This Dualsky T8 Thin Coreless Programmable HV Servo is designed for performance RC Gliders. This model features standard horizontal mounting tabs and has a lower torque rating than the plus version of the T8 servo.

Features

• Wide voltage compatibility (8.4V to 3.5V)

• Excellent torque and speed

• Two versions of over-sized (exposed) motors

• Two types of mounting tabs (upright & horizontal)

• High-quality hardened steel gears

• Fully CNC machined aluminium case

• Dual ball bearings

• Excellent heat dissipation

• Thin and compact design

• Designed for performance RC gliders (F5J light, eRES, F5K & F3K)

Specifications

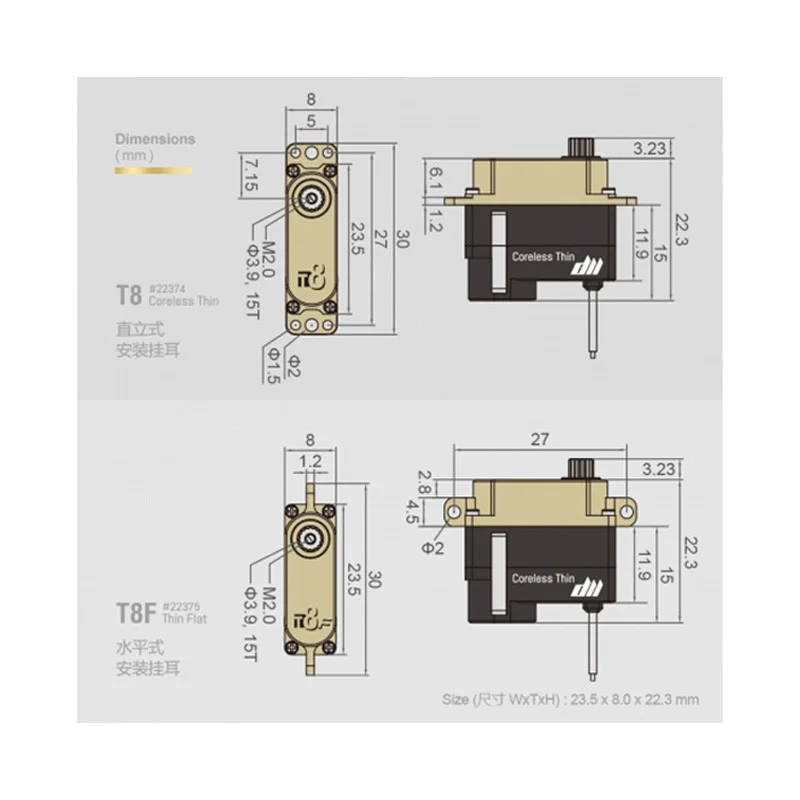

• Dimensions (mm): WxTxH: 23.5 x 8.0 x 22.3

• Weight with Wire (g): ~10.06

• Torque and Speed @ 3.3V: 1.0 kg.cm, 0.18 sec/60degrees

• Torque and Speed @ 3.8V: 1.3 kg.cm, 0.16 sec/60degrees

• Torque and Speed @ 6.0V: 2.0 kg.cm, 0.12 sec/60degrees

• Torque and Speed @ 7.4V: 2.6 kg.cm, 0.09 sec/60degrees

• Torque and Speed @ 8.4V: 3.0 kg.cm, 0.08 sec/60degrees

• Mounting Tab Spec: D2.0, P/R 27.0mm

• Idle Current: ~30mA

• Operating Temperature (F): -10°C...50°C

• Position Feedback: Potentiometer

• Programming: USBLINK MP

• Dead Band/ Resolution: 2μs (Programmable)

• Working Frequency: Upto 333Hz

• Operating Travel: ~ +/-50° (1000~2000 μsec)

• Neutral Position: 1500 μsec

• Maximum Travel: ~180°(500-2500 μsec)

• Bearings: 2 Ball Bearings

• Gear Set Material: Hardened Steel

• Output spline: 15T/Ø3.90

• Full CNC Alu. Case: YES

• Signal lead :150mm w/ JR plug
